M12 waterproof connectorDescription of 3~5 Pole Connector
Large Flat connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, it will be a perfet option. it is widely used in many application.
| Operation Parameters |
| Voltage Rating | 300VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 10mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 2.5mm2 |
M12 waterproof connector Features:
- Rated current: 20A/10rms.
- 2-4PIN power supply, 5-9PIN signal is optional.
- IP67/68 rating
- Voltage rating: 300V
- Cable Range: 3~11mm
- UL, TUV, CB, CCC, CE, RoHS approved
M12 waterproof connector Main characteristics
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
M12 waterproof connector Applicaiton of Bett M19 Connectors
- Communications Application
- product coding machines
- Electric power equipment
- Communications equipment
M12 waterproof connector Packaging & Delivery
| Packing | 1.plastic
2.carton
3.as the requirement of per custom |
| Port | Shenzhen |
| Lead time -
| 7-15 working days |
M12 waterproof connector FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2. Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3. Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we have strict QC team, all products will be tested before delivery.
4. Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5. Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.

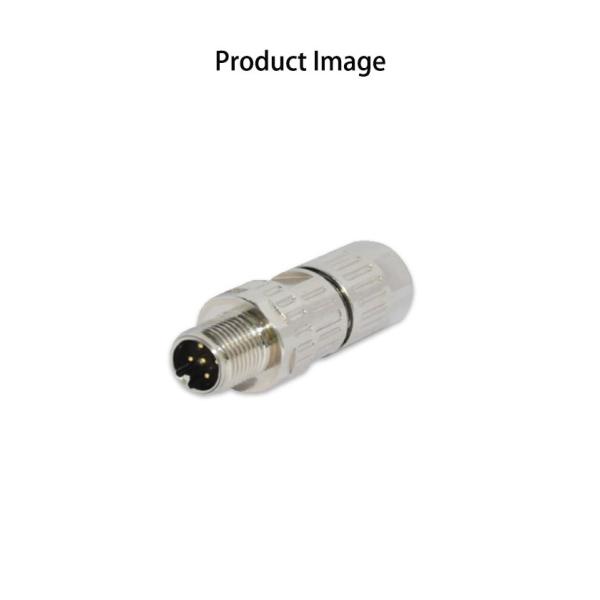

M12 waterproof connectorProduct Display
